Introduction to Understanding the J1772 EV Charger Standard
Electric vehicles (EVs) are becoming increasingly popular as a means of transportation due to their environmentally-friendly operation and low fuel costs. However, one of the challenges facing the widespread adoption of electric vehicles is the lack of a uniform charging standard. Different countries and regions have developed their own charging standards, which can make it difficult for electric vehicle owners to charge their vehicles when traveling. This is where the J1772 EV Charger Standard comes in.
To address this issue, the International Electrotechnical Commission (IEC) has established international charging standards for electric vehicles. These standards ensure that charging stations are compatible with all types of electric vehicles, regardless of the manufacturer.
One of the most widely-used charging standards is the J1772 EV Charger Standard. Developed by the Society of Automotive Engineers (SAE), the J1772 standard defines the physical and electrical characteristics of an EV charging connector. It specifies the voltage, current, and communication protocols used by charging stations to communicate with electric vehicles.
The J1772 standard is widely used in North America and is supported by many leading electric vehicle manufacturers, including Tesla, Chevrolet, Nissan, and BMW. This widespread adoption of the J1772 standard has helped to ensure that electric vehicle owners can charge their vehicles at a variety of charging stations.
History of the J1772 Standard
The J1772 standard was developed by the Society of Automotive Engineers (SAE) in response to the growing need for a uniform charging standard for electric vehicles. The standard was first published in 2009, and it was designed to be a universal charging standard that could be used by all electric vehicle manufacturers.
The J1772 standard was quickly adopted by the electric vehicle industry and is now widely used in North America. Many leading electric vehicle manufacturers, including Tesla, Chevrolet, Nissan, and BMW, have incorporated the J1772 standard into their charging systems. This has helped to ensure that electric vehicle owners can charge their vehicles at a variety of charging stations.
The J1772 standard has evolved over time to meet the changing needs of the electric vehicle industry. For example, in 2013, the SAE released an updated version of the J1772 standard, J1772-2013, which increased the maximum charging power from 5.7 kilowatts to 19.2 kilowatts. This change has allowed for faster charging times and has helped to support the growth of the electric vehicle industry.
In addition, the J1772 standard is still under development to support new technologies, such as fast charging and wireless charging. These updates will continue to help the electric vehicle industry grow and evolve, ensuring that electric vehicles are an attractive and practical alternative to traditional gasoline-powered vehicles.
Features and Benefits of the J1772 Standard
One of the key features of the J1772 EV Charger Standard is its compatibility with a range of electric vehicles. The J1772 connector is compatible with a wide range of electric vehicles, regardless of the manufacturer. This makes it easier for electric vehicle owners to charge their vehicles at a variety of charging stations. This compatibility has helped to make electric vehicles more accessible and convenient for consumers.
The J1772 standard includes several safety features to ensure that electric vehicle charging is safe for both the vehicle and the user. For example, the J1772 connector includes a locking mechanism to prevent accidental disconnection during charging. In addition, the J1772 standard includes communication protocols that help to prevent overcharging and other safety issues.
The J1772 standard is designed to be easy to use. The J1772 connector is simple to operate, and the charging process is straightforward. This helps to make electric vehicle charging accessible to a wide range of consumers, regardless of their technical expertise.
The J1772 standard is efficient, as it allows electric vehicles to charge quickly and effectively. The standard supports charging at a range of voltages and currents. It suits the needs of different electric vehicles by adjusting it. This flexibility ensures efficient and effective charging for electric vehicles, regardless of the station used.
How the J1772 EV Charger Standard Works
The J1772 standard governs the charging process for electric vehicles. It begins when the electric vehicle is connected to the charging station via the J1772 charging connector. The charging station then communicates with the electric vehicle to determine the vehicle’s charging requirements, such as the maximum voltage and current. The charging station then adjusts its output to meet these requirements, and the electric vehicle begins charging. The process continues until the electric vehicle is fully charged or the charging station is disconnected.

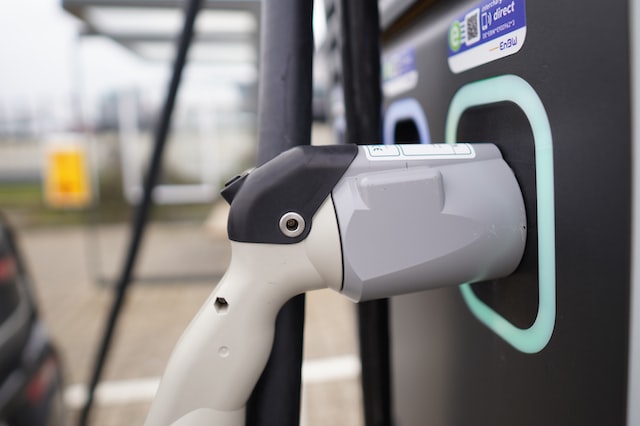

The J1772 charging connector is the physical interface between the electric vehicle and the charging station. The connector is compatible with a wide range of electric vehicles, regardless of the manufacturer. The J1772 charging connector’s design is easy to use, with a simple locking mechanism to prevent accidental disconnection during charging.
The charging control box is the electronic component of the J1772 charging station that communicates with the electric vehicle and manages the charging process. The control box includes a microprocessor that controls the output of the charging station and monitors the charging process. It also includes safety features to prevent overcharging and other safety issues.
The charging control circuit is the electrical component of the J1772 charging station that manages the flow of electricity between the charging station and the electric vehicle. The control circuit meets J1772 standards for maximum charging voltage and current. The control circuit also includes safety features to prevent overcharging and other safety issues.
In summary, the J1772 standard governs the entire charging process for electric vehicles. Starting from the physical interface and communitcation between the electric vehicle and the charging station, to the flow of electricity during the charging process. This comprehensive approach helps to ensure that electric vehicle charging is safe, efficient, and accessible to all.
Challenges with the J1772 Standard
One of the challenges with the J1772 standard is that it provides limited charging speed compared to other charging standards. This means that it takes longer to charge an electric vehicle using the J1772 standard. However, the slower charging speed is a trade-off for the compatibility and safety features that the J1772 standard provides.
Range anxiety is a common concern among electric vehicle owners, and it is a challenge for the J1772 standard as well. Range anxiety refers to the fear of running out of power while driving an electric vehicle. It can be a concern for drivers who are traveling long distances. As well as those who rely on their electric vehicles for daily transportation. This challenge is not specific to the J1772 standard, but rather is a broader issue for the electric vehicle industry as a whole.
Another challenge with the J1772 standard is the limited availability of J1772 charging stations. While the number of J1772 charging stations is increasing, it still has limits compared to other charging standards. This limited availability can make it difficult for drivers to find a charging station when they need it. This can be a barrier to the adoption of electric vehicles.
Despite these challenges, the J1772 standard remains an important part of the electric vehicle industry. The compatibility, safety features, and ease of use provided by the J1772 standard make it an attractive option for electric vehicle owners, and the continued growth of the electric vehicle industry is likely to drive further adoption of the J1772 standard in the future.
Future of the J1772 standard
The advancements in charging technology are likely to impact the future of the J1772 standard. The J1772 standard may have updates to take advantage of these advancements, leading to improvements in charging speed and efficiency.
One potential area of improvement for the J1772 standard is charging speed. As charging technology continues to advance, it may become possible to charge electric vehicles faster using the J1772 standard. This would help to address the issue of limited charging speed. The J1772 standard can be more appealing to electric vehicle owners and could further drive the adoption of electric vehicles.
Another potential area of improvement for the J1772 standard is the availability of J1772 charging stations. As the electric vehicle industry continues to grow, the availability of J1772 charging stations will also increase. This increased availability would make it easier for electric vehicle owners to find a charging station when they need it. This will address the challenge of limited charging station availability.
In conclusion, the advancements in charging technology and the electric vehicle industry will likely shape the future of the J1772 standard. While there are challenges to overcome, the J1772 standard remains an important part of the electric vehicle industry. It is likely to play a significant role in the future of electric vehicles.
Conclusion: The J1772 EV Charger Standard
The J1772 standard is a widely adopted electric vehicle charging standard that provides compatibility, safety features, and ease of use. The standard’s goal was to promote the growth of the electric vehicle industry. It has been adopted by many manufacturers, making it an important part of the electric vehicle charging landscape. The J1772 standard works by using a charging connector, control box, and control circuit to facilitate efficient charging. However, the J1772 standard also has some challenges. This includes limited charging speed, range anxiety, and limited availability of J1772 charging stations.
The J1772 standard is important because it provides a reliable and consistent method for charging electric vehicles. The compatibility and safety features provided by the J1772 standard make it an attractive option for electric vehicle owners. The growth of the electric vehicle industry is likely to drive further adoption of the J1772 standard in the future. The advancements in charging technology and the potential for increased charging station availability also make the J1772 standard a key player in the future of electric vehicle charging.
In conclusion, the J1772 standard plays a vital role in the EV industry and it is likely to continue in the future. The compatibility, safety features, and ease of use provided by the J1772 standard make it a critical component of the electric vehicle charging landscape, and the continued growth of the electric vehicle industry is likely to drive further adoption of the J1772 standard. As the electric vehicle industry continues to evolve, the J1772 standard is likely to play a crucial role in shaping the future of electric vehicle charging.
